24 Bands Power Adjustable Mobile Phone Remote Control Wireless Camera VHF UHF Signal Suppressor
1. Introduction

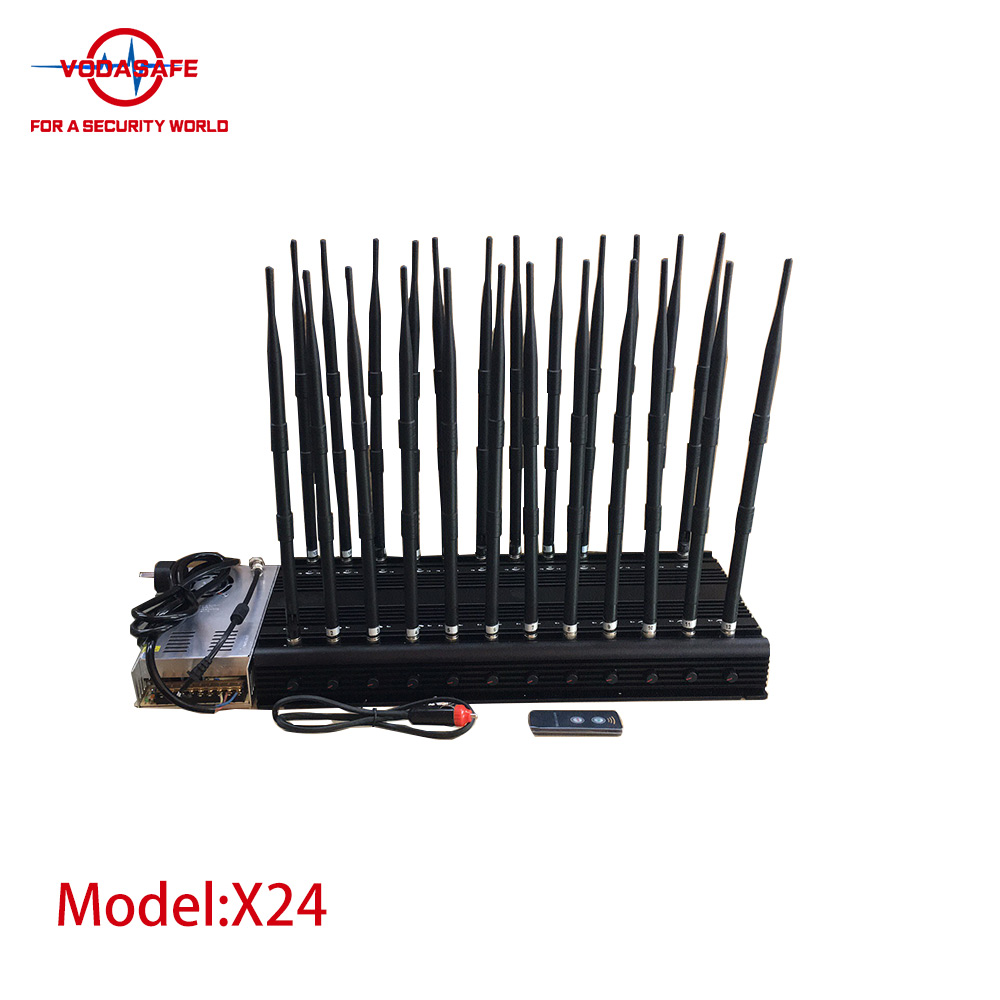

X24 desktop use wireless signal jammer is an information security product with completely independent intellectual property right. It can exactly block almost all the wireless signals like wireless network, Bluetooth, wireless transmission, etc. and tracking signal like car positioning, mobile phone positioning, google network positioning, etc. in about 1-60 meters. When it finds the signals, it will directly isolate it.

2. Technology
*available TX frequency which can be adjusted and used in this 24 antenna jammer (adjustable per customer request)
|
*available TX frequency which can be adjusted and used in this 24 antenna jammer(adjustable per customer request)
|
|
|
1st Channel
|
VHF/Lojack: 135-175MHz
|
|
2nd Channel
|
CDMA/RC868/4G MOB/GSM 900/LORA/RC915: 850-960MHz
|
|
3rd Channel
|
DCS/GSM 1800: 1805-1880MHz
|
|
4th Channel
|
wireless camera: 900-1100MHz
|
|
5th Channel
|
PCS: 1900-1995MHz
|
|
6th Channel
|
4G 1700: 1700-1800MHz
|
|
7th Channel
|
3G: 2100-2200MHz
|
|
8th Channel
|
4G 2300: 2300-2400MHz
|
|
9th Channel
|
4G 700: 700-850MHz
|
|
10th Channel
|
2.4G Wi-Fi: 2400-2500MHz
|
|
11th Channel
|
4G 2600: 2496-2690MHz
|
|
12th Channel
|
UHF/RC433/434: 400-470MHz
|
|
13th Channel
|
RC315: 315MHz
|
|
14th Channel
|
RF radio: 80-110MHz
|
|
15th Channel
|
wireless camera: 1100-1200MHz
|
|
16th Channel
|
GPS L2+L5: 1170-1300MHz
|
|
17th Channel
|
GPS L3+L4: 1370-1496MHz
|
|
18th Channel
|
4G/5G 600: 600-700MHz
|
|
19th Channel
|
GPS L1: 1500-1620MHz
|
|
20th Channel
|
5G 3.4G: 3400-3600MHz
|
|
21st Channel
|
5G 4.0G: 4800-5000MHz
|
|
22nd Channel
|
5.2G Wi-Fi: 5150-5350MHz
|
|
23rd Channel
|
5.8G Wi-Fi: 5750-5850MHz
|
|
24th Channel: Skylink
|
453-468MHz
|
3. Specification
*Colour: Black
*Antenna: 24 omni-directional antennas
*Jamming range: Radius 1-60M【the Cellular signal must ≤-75dBm in the location】
The jamming radius still depends on the strength signal in given area
*Available system: Include analog (AMPS,TACS,NMT) and digital (GPRS,GSM, DCS, CDMA, PDC, TDMA, PHS, PCS, IDEN, Wifi / Bluetooth/wireless video,UMTS) /GPS and etc.
*Single output power: +33dBm /2W
*Working Power: AC220V / DC12V 20A
*Dimension: 535×235×58 mm not include antenna
*Weight: 5.15kg (host) / 7.2KG (whole set)
*Working Temperature: -40 to +55℃
*Relative humility: ≤90%(RH)
*Air pressure: 86~106kPa
*Safety regulation: AC Adapter UL (E190582) / CSA (LR112971 Level 3)
4. Features
1, effective prevention by GPS satellite positioning tracking, to protect your whereabouts of privacy and confidential information
2, while effectively shielding CDMA / GSM / DCS / PHS / 3G / 4G and other mobile phone signals
3, can shield 2.4G WIFI / 5.8G WIFI and wireless video transmission transmission signal
4, small size, light weight, large coverage, easy to carry
5. Operation Instruction
*take out the device
*screw the antenna to the right position according to the main unit indicated and put on the power switch (otherwise the jammer can not work)
*switch on the electricity, the blue light on, the jammer is working.
*when the jamming range coming to dwindle, it shows the power is too low, please switch to higher.
*since the valid scope covered by the jammer is a round area with the isolator as the center, put the jammer in the center place, better 2 meters high from the floor.
*please keep away strong electromagnetic sources with heat sources to ensure high isolation affect and stable operation for a long time.
*switch off the device in time when not using it, lest the normal operation of mobile phones be affected.
*while using the isolator outdoors, be sure to keep it away from water or damp.
*keep away from caustic gases and liquids, and be sure to make it dust-proof and moisture-proof, lest the aging of the components inside should be accelerated.


6. Maintenance
1. The jammer needs no special maintenance.
2. Do not use chemical solvents or prevent water from entering into the device when cleaning its surface.
3. When not use, the device must be placed in dry and ventilated places, to avoid its contact with salty mist and noxious gases.
7. Application Place
1.Bank, Conference room, auditoriums, law court, library, exam room, school, cinema, theater, and hospital etc.
2. At places where using mobile phones is prohibited such as government, military, finance, security, police and command center etc.
8. Packing List
1. multi functional signal jammer(main unit) 1 piece
2. antenna 1set (24 pieces)
3. power adaptor(AC plug) 1 piece
4. car charger 1 piece
5. remote control 1 piece
6. user’s manual(depend on customer choice) 1 piece
